Molex FFC Shrouded Wire To Board Terminal Block 2 Row 2.54mm Pitch

MOLEX 70246-2004
Molex 2.54mm pitch low profile,shrouded Through Hole Straight Wire-to-Board 2 row pin header.
andnbsp;
Description:
2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 20 Circuits, 0.127andmicro;m Gold (Au) Plating, Tin(Sn) PC Tail Plating
Current - Maximum per Contact 2.5A Voltage - Maximum 250V DC Solder Process Data Duration at Max. Process Temperature (seconds) 010 Lead-free Process Capability WAVE Max. Cycles at Max. Process Temperature 001 Process Temperature max. C 235 Material Info Reference - Drawing Numbers Application Specification 713080001-AS-000 Packaging Specification PK-87835-001 Product Specification PS-70246-100-001 Sales Drawing SDA-70246-XX20-25_39
andnbsp;
Specification :

andmiddot; 2.54mm pitch dual row board-to-board C-Grid connector system

andmiddot; Press-fit compliant pin provides design flexibility

andmiddot; Pre- assembled FFC and IDT connector assemblies

andmiddot; Gross weight: 2.505 g

andnbsp;
Note:
1. PIN push out force 0.9072kg/2LBS MN.
2. PIN Solder ability per Molex Spece. ES-152
3. Product Spec. PS-70246 Applies
4. Wafer to be flat withn .003 MM/MM
5. Dimensions for plating location: Measure point for thickness, Minimum coverage
6. Gold end of pin unless overall plated.
7. Finish :
*-571: 15 MICRO inches min gold plate on contact and 75 micro inches min tin plate on solderall both over 50 micro inches MIN Nickel overall.
* -574: 30 MICRO INCHES MIN gold plate on contact and 75 micro inches min tin plate on solderall both over 50 micro inches MIN Nickel overall.
* -544: 5 MICRO INCHES MIN gold plate on contact and 75 micro inches min tin plate on solderall both over 50 micro inches MIN Nickel overall.
andnbsp;
andnbsp;

andnbsp;
andnbsp;
Applications
Automotive, Communications andamp; Networking, Consumer Electronics, Lighting, Medical and so on .
andnbsp;

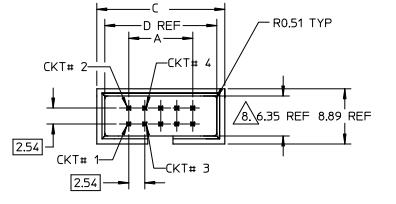

Drawing:
